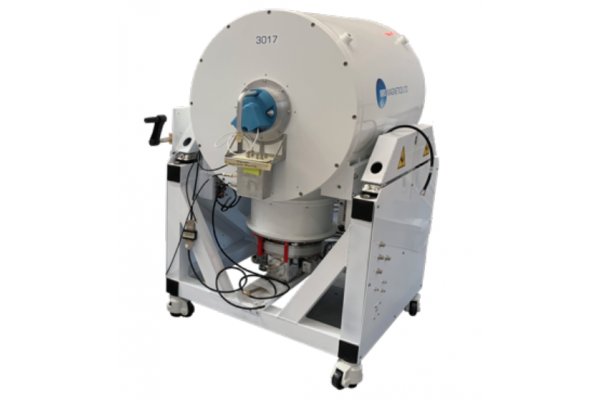

Sistema de Imageamento de Rocha ImaCore 3017

SKU: ImaCore 3017

The ImaCore 3017 3D rock core imaging system is the result of a partnership between Green Imaging Technologies (GIT), an established leader in nuclear magnetic resonance (NMR) rock core analysis software, and MR Solutions, leader in magnetic resonance ima

Descrição

The ImaCore 3017 3D rock core imaging system is the result of a partnership between Green Imaging Technologies (GIT), an established leader in nuclear magnetic resonance (NMR) rock core analysis software, and MR Solutions, leader in magnetic resonance imaging (MRI) instruments. This partnership has resulted in a powerful MRI rock core instrument with an easy to use, yet robust user interface.


ImaCore provides an adjustable field of 0.1 to 3 T in a stable, cryogen free imager, combined with industry leading 3D imaging software. Users can quickly and easily obtain high resolution three dimensional (3D) images of all the fluid in the sample. Sample sizes can be standard 1” or 1.5” core plugs, or full 3” or 4” diameter core.

The ImaCore flexible instrument design also allows for long core studies, and lends itself well to the use of flow cells within the instrument to perform flow studies.

The flexibility of the ImaCore system extends to the magnet orientation; it is build on a rotating housing so that users can orientate the magnet horizontally or vertically.

Complete the reservoir puzzle with an ImaCore 3D imaging system.

Includes the following imaging pulse sequences:

2D spiral SE-SPI
2D spiral SPRITE
3D conical SE-SPI
3D conical SPRITE
1D SE-SPI and SPRITE profiles
1D spatial T2
2D spatial T2
Out of volume suppression for long cores or profiles
Slice selection for T2
2D Spiral SE-SPI, 3D Conical SE-SPI
2D Spiral SPRITE, 3D Conical SPRITE
FSE 2D Centric and 3D FSE Spiral









Specifications - ImaCore MRI


ImaCore MRI
Site RequirementsPlug and Play System


Magnet
Magnet0.1T - 3.0T (rampable)
Field StrengthCryogen-free, Superconducting magnet
Bore size17cm
Integrated RF ShieldYes
5 Gauss line (from magnet center)60cm radially x 80cm axially
F.O.V.Over 30mm +/- 0.1ppm, Over 70mm DSV +/- 1ppm
HomogeneityElliptical: 100mm x 70mm
Magnet Weight220kg
Dimensions (Including stand)88cm Long x 77cm Wide x 138cm High


Gradient System
Gradient diameter/height156/100mm
Strength100 microseconds
Rise time @100A, 150VX - 486 mT/m Y - 470 mT/m Z - 530 mT/m
Linearity50,00%
Max duty cycleOver 70mm: +/- 5%


Electronics
EVO Spectrometer2TX, 4RX - Optional RX channels in blocks of 4
RF Transmit Amplifier Power500W
Pre-amplifiers x2, gain30dB
Pre-amps x2 Noise Figure< 0.3dB
Gradient AmplifiersX, Y, Z
Shim Power SuppliesB0 plus 5 channels for second order
Cabinet Size & Weight158cm High x 78cm Deep x 55cm Wide x 150Kg


Requirements
Electrical-Compressor380V/50Hz or 480V/60Hz 3phase, 7.5kW
Electrical-Electronics Rack208-240V 50/60Hz single phase, 6.5kW peak, <3.0kW rms
Water Supply7 litres/min. minimum


Sample Size
Maximum Diameter100mm
Maximum Length70mm
